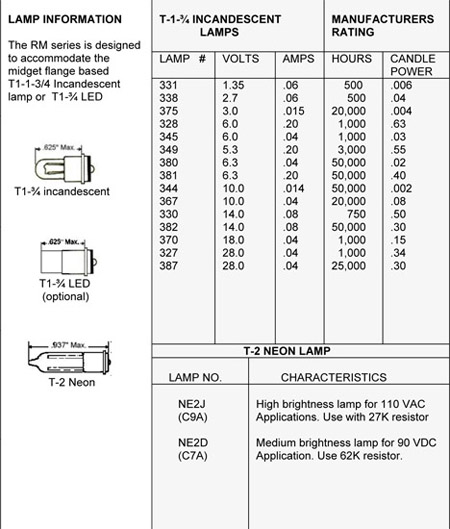

R – Lites are Eldema’s product family of relampable holders and lens caps for Midget flange based T- 1 ¾ incandescent and T-2 neon bulbs. The lamps and lens caps are replaceable from the front of the panel. There are five R-Lites groups each with its own features - the holder and Lens cap part numbers in each group start with the same two letters to insure mating parts.

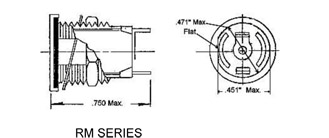

The RM-RN groups meet MIL-L-3661. The RM is for incandescent lamps - the RN Series with a built in resistor is for neon lamps.

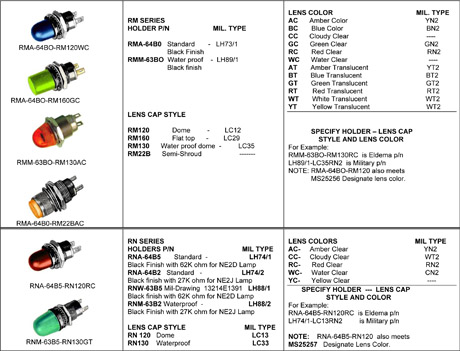

Standard types RMA and RNA – water proof types RMM, RNM and RNW – two tin plated lug terminals – Black anodized aluminum case – High impact plastic lenses. Mount from the front in .468” clearance hole. Equivalent Military numbers are listed.

ELDEMA RM & RN SERIES LENS CAPS
MATE WITH RM & RN SINGLE LAMPHOLDERS

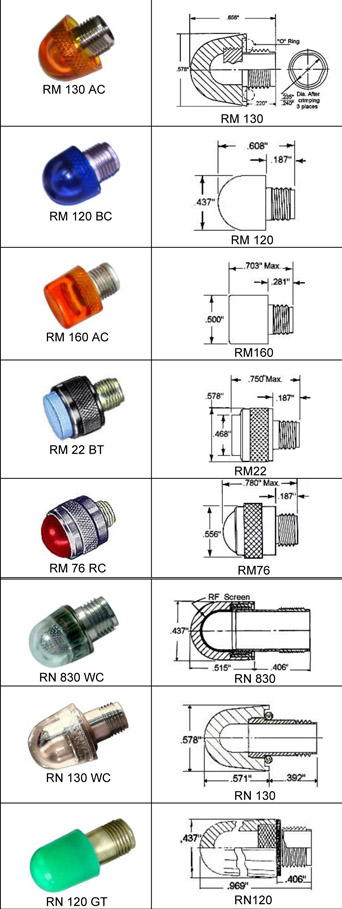

These lens caps mate with the RM & RN series single lampholders. The holder and lens cap  part numbers in each group start with the same two letters to insure mating parts. The RM lens cap is for incandescent lamps T-1¾ Midget flanged base the RN les cap is for the T-2 Neon lamps. All the lens caps are crimped in three places to securely hold the lamp and easily removed
from the front panel without any special; tools.
