Eldema CF Series incandescent C-lites have an unbased lamp packaged
Inside the cartridge, with connections made to the two pins. The lamps used are the standard T-1-3/4 bulb size or smaller with ratings from 1.35 to 28 volts available. Lens colors in both clear and translucent shades are all standard. The short flat lens style cartridge- CF03, meets MS18235 requirements.

Lens shape and color
--------------------------------------------------------------------------------------------
The lamp specification shown are the lamps manufacturer’s rating and are based on average performance under laboratory conditions. The milli ampere MA ratings are nominal values with 10% tolerance at rated voltage operation.

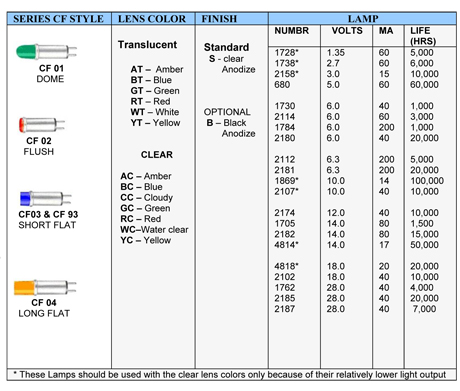

Lamp Specifications
--------------------------------------------------------------------------------------------

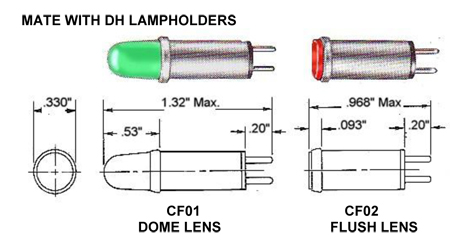

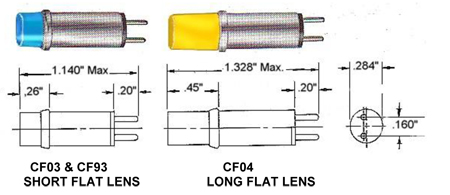

The CF03, short flat lens is the style used in most applications. The long flat lens, CF04  and the dome  lens,  CF01 are used where wide side visibility is important.

The lens colors for CF incandescent C-Lites are usually the translucent shades except for the lower brilliance lamps which should be used with  the clear colors. The translucent lens colors give an even, diffused light over the lens surface. The transparent lens color (WC- water clear) should be used with the lampholders and screw-on D Series lens caps.

ORDERING INFORMATION

To order Eldema incandescent C – Lites
refer to the table above and specify
Style,  Lens Color,  Cartridge Finish and
Lamp Number.

       EXAMPLE PART NUMBER
           CF03 – RTS – 218

CF 93 lens style
--------------------------------------------------------------------------------------------
A fluted lens cap for improved light dispersion on low power
Lamps and elimination of “hot spots” on high power lamps
is available. Dimensionally same as CF03 below
